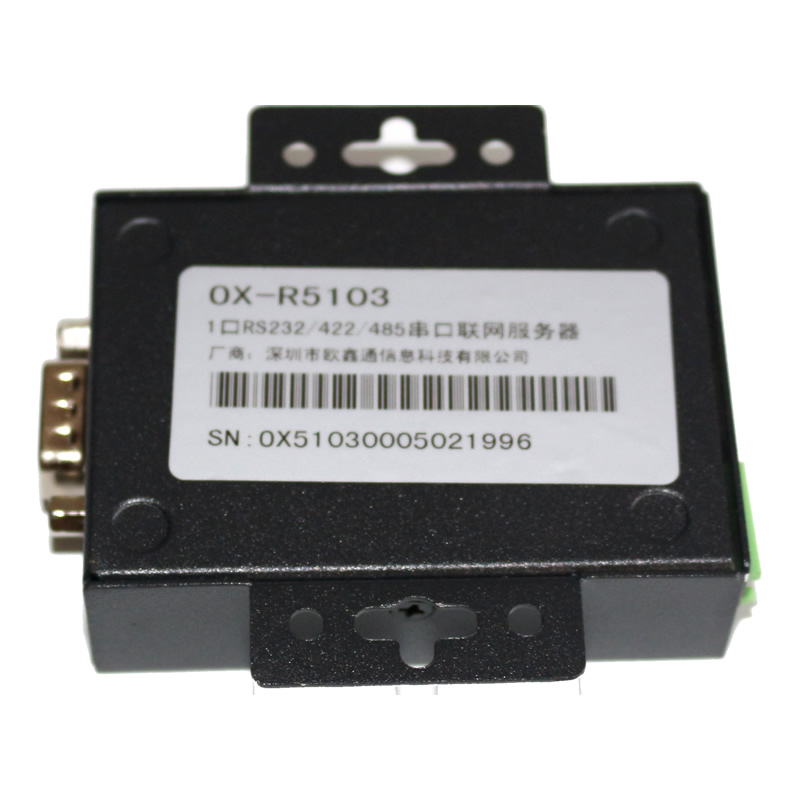

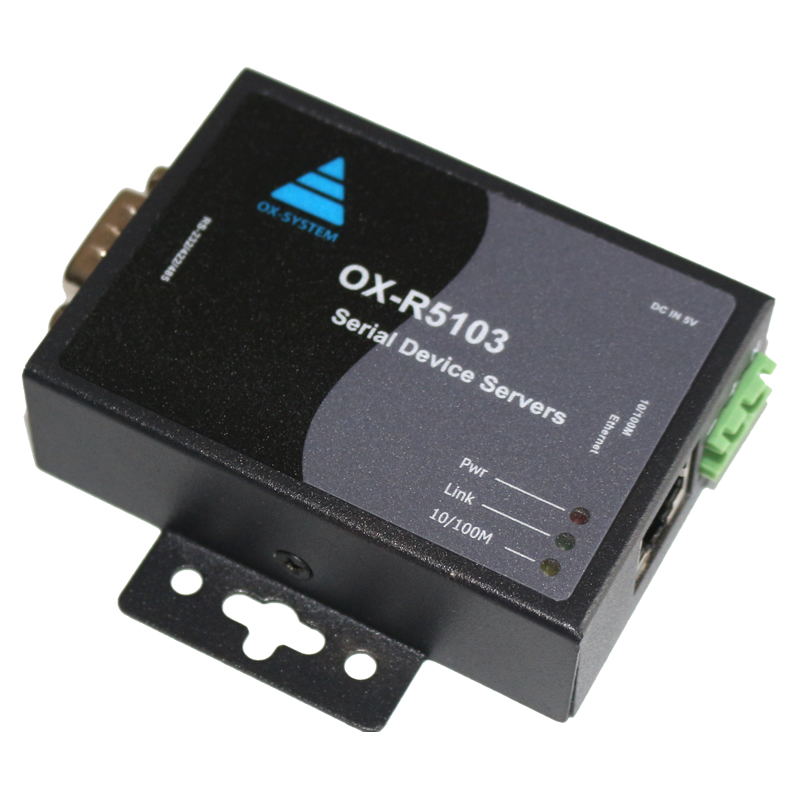

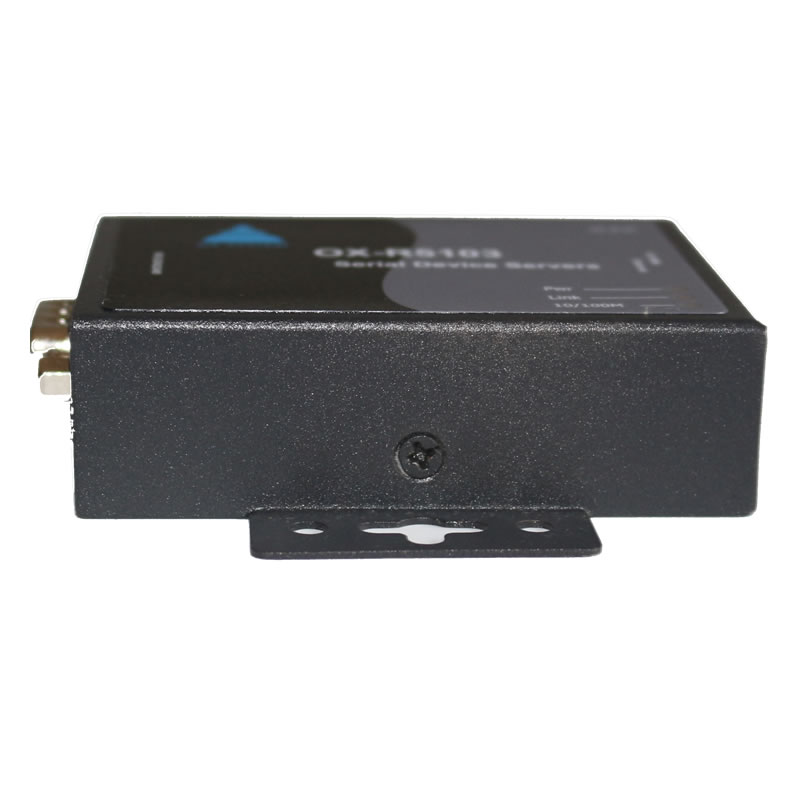

OX-R5103 1-port serial portServer, 1 RS-232/RS-485/RS-422 serial port with one of three options (select serial port form through software configuration), 1 10/100M adaptive Ethernet port, powered by 110-230 adapter
Product Model Description
OX-R5101: 1 RS-232 DB9 pin serial port, 1 10/100M adaptive Ethernet port, powered by 110-230 adapter
OX-R5103 1 RS-232/RS-485/RS-422 serial port, choose one of the three serial ports (through software configuration to select the serial port form), 1 10/100M adaptive Ethernet port, powered by 110-230 adapter
CPU:32 bit 100MHz
Memory:2MB
Ethernet speed:10/100 Mbps adaptive and supports manual settings.
Communication mode:10M half duplex and 10M full duplex, 100M half duplex and 100M full duplex
Port protection:15KV ESD surge protection
Serial port:1 RS-232/422/485 serial port

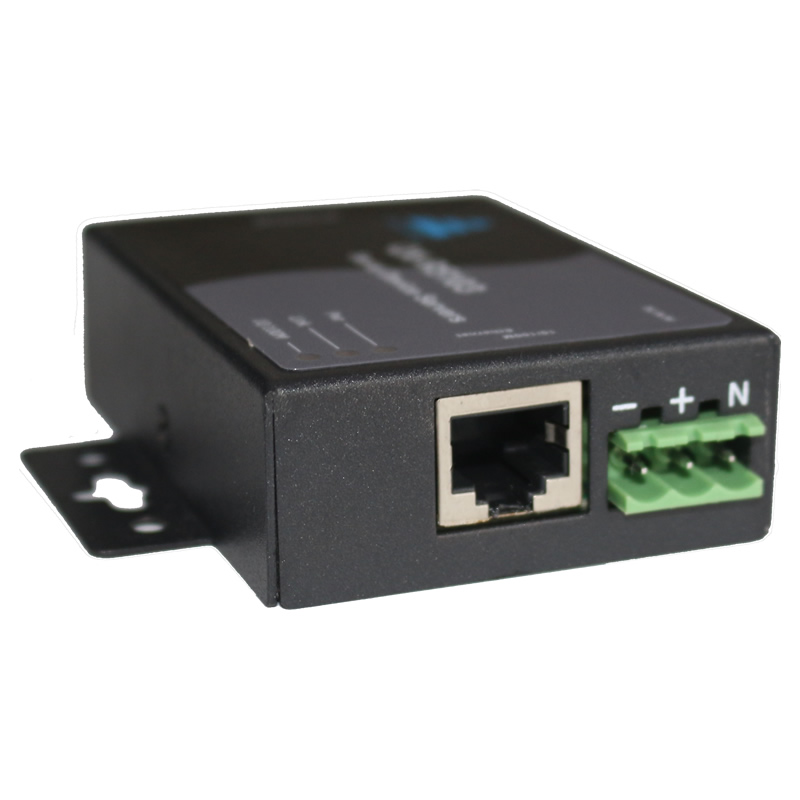

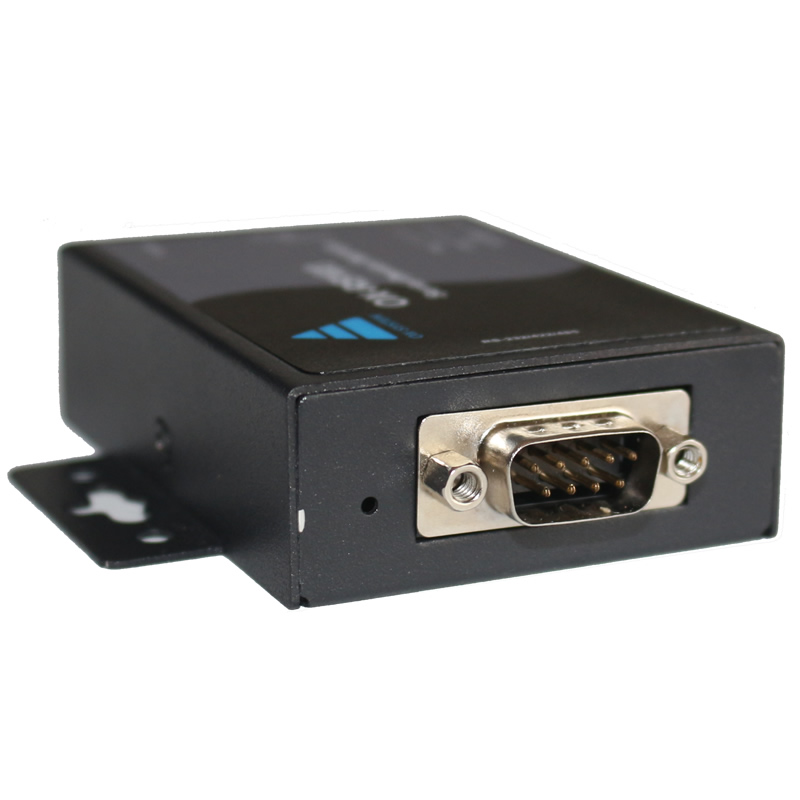

Port connection form:DB9 Male to RS-232 and RJ45 to Ethernet
Signal:RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx , Tx-, Rx , Rx-, GND
RS-485 (4-wire) Tx, Tx -, Rx, Rx -, GND
RS-485 (2-wire) Data, Data -, GND
Serial communication parameter data bits:5, 6, 7, 8Verification:None, Even, Odd, Space, Mark
Stop position:1, 1.5, 2
Flow control:RTS/CTS, XON/XOFF
Speed:300 bps to 230.4Kbps
agreement:DHCP, Telnet, TCP, UDP, IP, ICMP, ARP
Real Com driver:Windows NT/2000/XP/vista/7
Fixed TTY driver:SCO UNIX, Linux
to configure:Telnet or WEB interface
Power input:220V AC adapter power supply
Working humidity:5 to 95%
Working temperature:-20 to 85 °C
