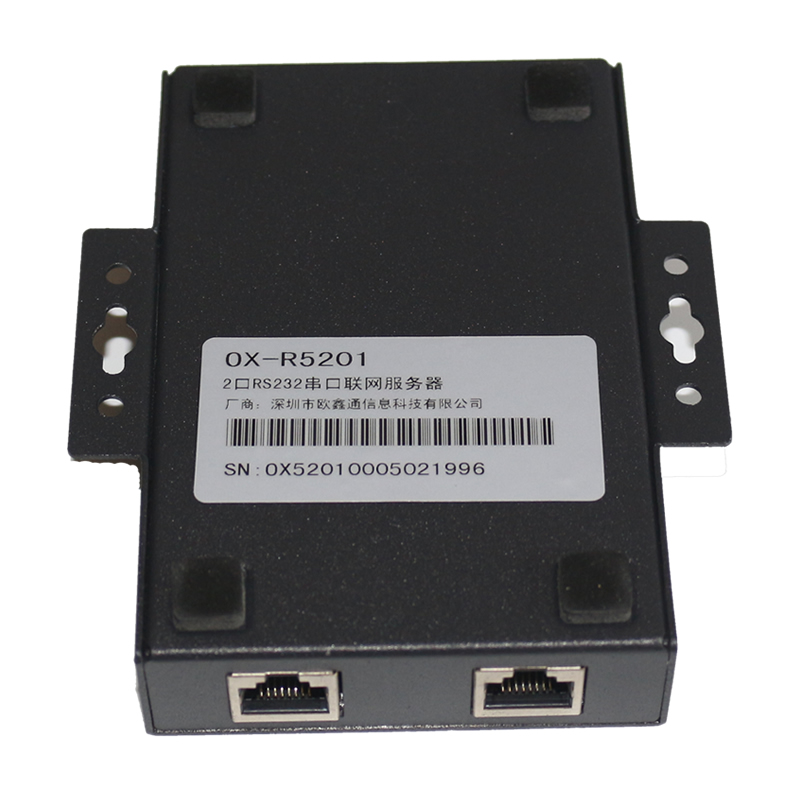

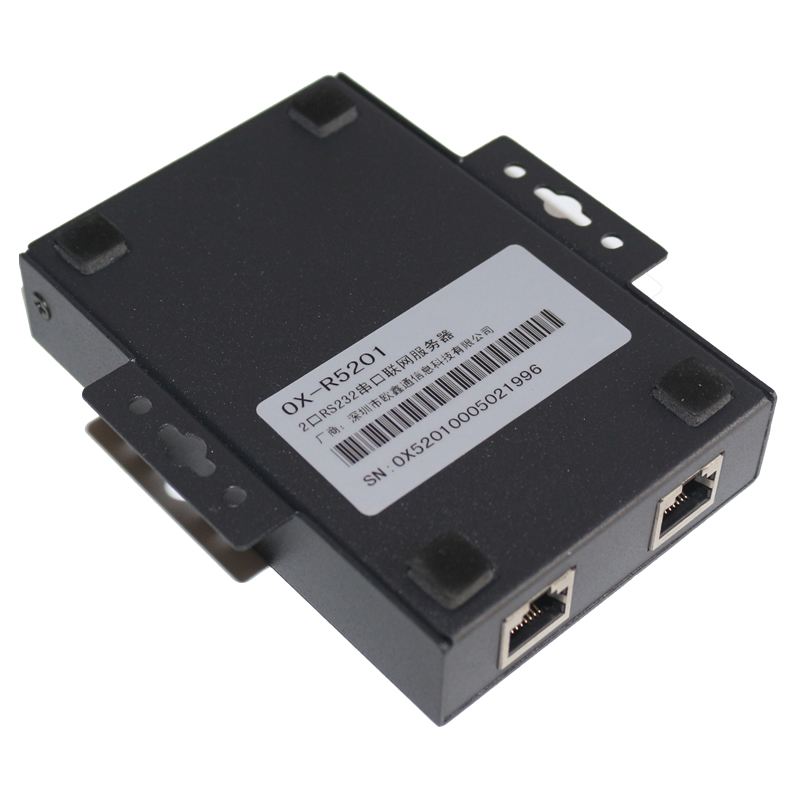

2-port RS232 networked serial port server OX-R5201

? Compact size and rich functions ? 10/100M adaptive Ethernet port, realizing fast networking of serial devices ? High performance processor, large memory space ? Parameter configuration can be remotely performed through a web browser via the network ? Embedded 15KV ESD surge protection ? Optional embedded 2.5KVDC isolation protection ? Intuitive Chinese menu setting interface, making installation and configuration easier ? RS-232/422/485 serial ports can be flexibly combined ? Real COM port driver under WINDOWS, supporting up to 6 hosts to open the same serial port at the same time ? Supports TCP and UDP sockets, each The serial port supports 6 different session modes, provides fixed TTY drivers for UNIX and LINUX, supports PPP/SLAP dial in and dial out, supports TTY and can connect to character terminals in the banking system, uses transparent transmission to solve complex TCP/IP protocols, AES protocol Encryption function (optional) ensures reliable security of user data. Customized products are available, including terminal serial interfaces, terminal power interfaces, and easy wiring

OX-R5201 2-port serial server, 2 RS-232 serial ports, 1 10/100M adaptive Ethernet port, powered by 110-230 adapter

Product Model Description

OX-R5201 2 RS-232 serial ports, 1 10/100M adaptive Ethernet port, powered by 110-230 adapter
OX-R520X 1 RS-232 serial port, 1 RS-485/RS-422 serial port, 1 10/100M adaptive Ethernet port, powered by a 110-230 adapter
OX-R5202 with 2 RS-485/RS-422 serial ports, 1 10/100M adaptive Ethernet port, powered by 110-230 adapters
OX-R5202T 2 RS-485/RS-422 serial ports, terminal interface form, 1 10/100M adaptive Ethernet port, powered by 110-230 adapters
OX-R5202T-I 2 RS-485/RS-422 serial ports, terminal interface form, 2.5KV DC isolation protection, 1 10/100M adaptive Ethernet port, 110~230 adapter power supply

CPU: 32 bit 100MHz
Memory：8MB
Ethernet speed10/100 Mbps adaptive and supports manual settings.
communication mode10M half duplex and 10M full duplex, 100M half duplex and 100M full duplex
Port protection15KV ESD surge protection with optional 2.5KV DC isolation protection
serial port: 2 RS-232/422/485 serial ports
Port connection form：RJ45 Male to RS-232/RS-485 and RJ45 to Ethernet
signal：RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx , Tx-, Rx , Rx-, GND
RS-485 (4-wire) Tx, Tx -, Rx, Rx -, GND
RS-485 (2-wire) Data, Data -, GND
Serial communication parameter data bits：5, 6, 7, 8
check：None, Even, Odd, Space, Mark
stop bit：1, 1.5, 2
flow control：RTS/CTS, XON/XOFF
speed：300 bps to 230.4Kbps
agreement：DHCP, Telnet, TCP, UDP, IP, ICMP, ARP
Real Com driver：Windows NT/2000/XP/vista/7
Fixed TTY driver：SCO UNIX, Linux
configurationTelnet or WEB interface
power input220V AC adapter power supply or DC power supply (optional)
Working humidity：5 to 95%
operation temperature：-20 to 85 °C

OX-R5200系列
