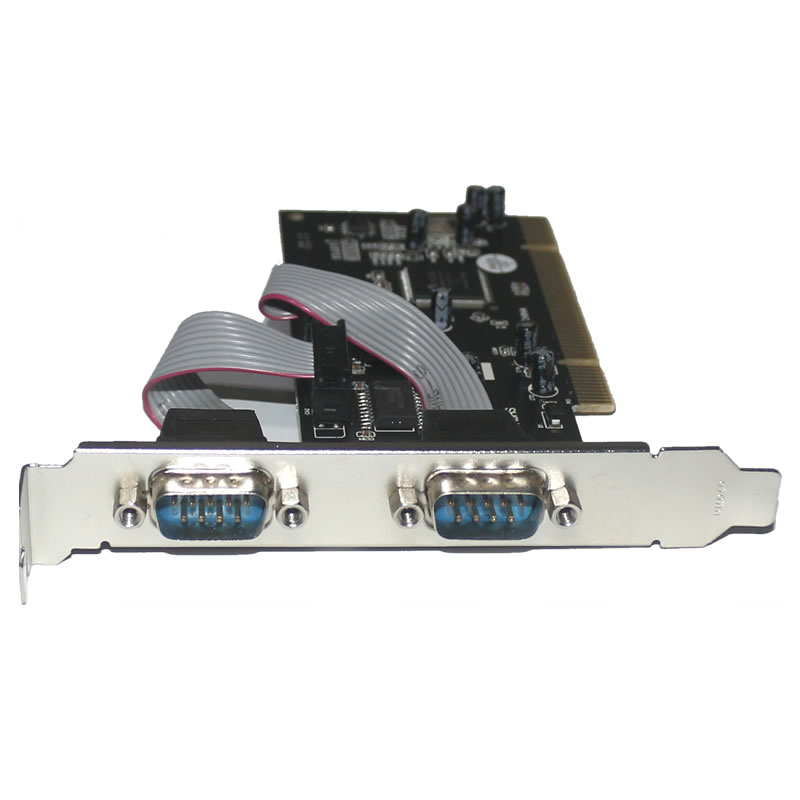

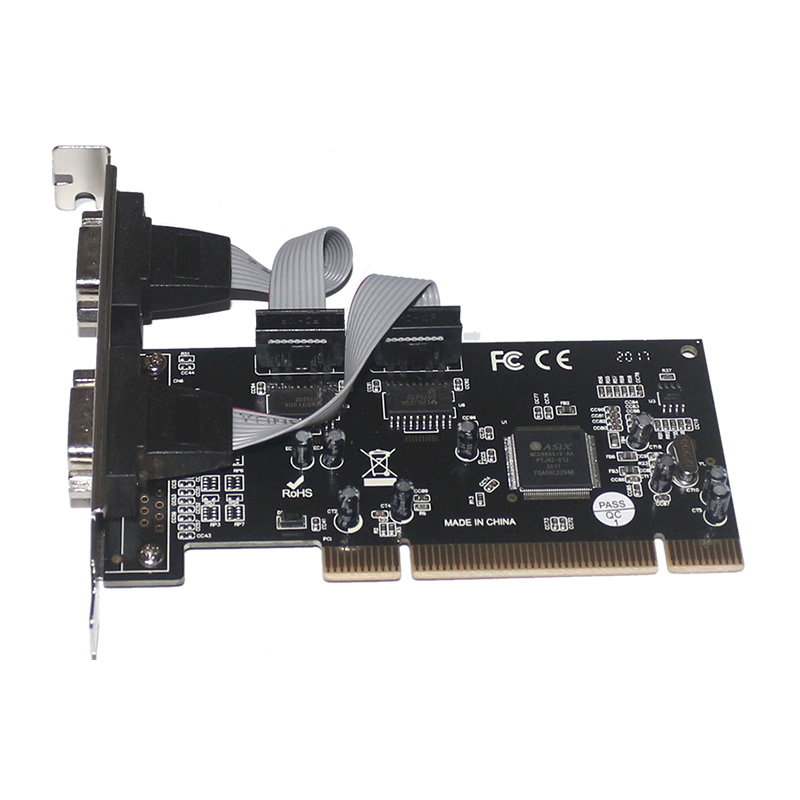

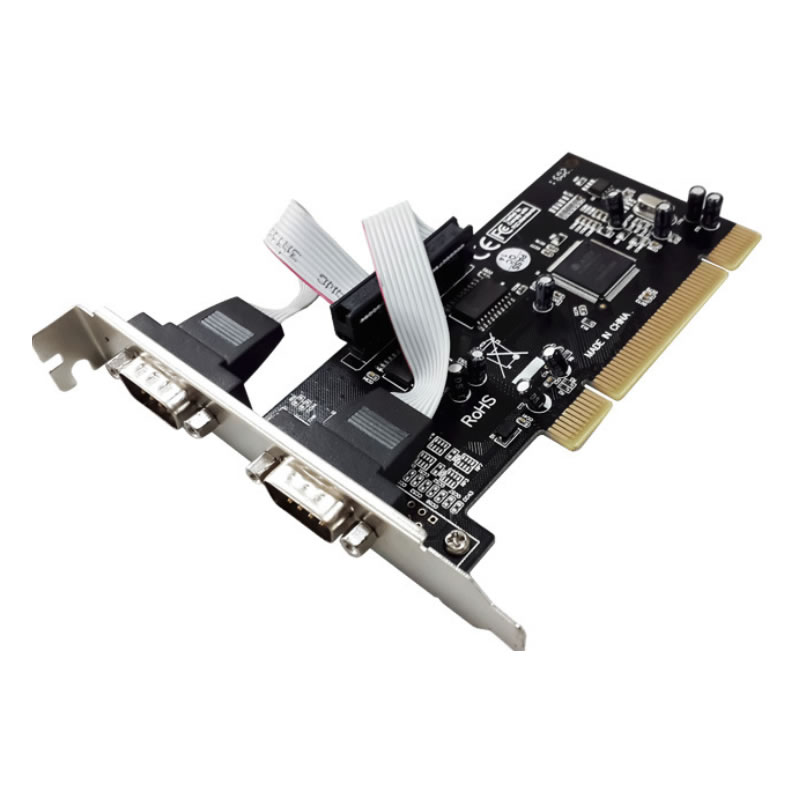

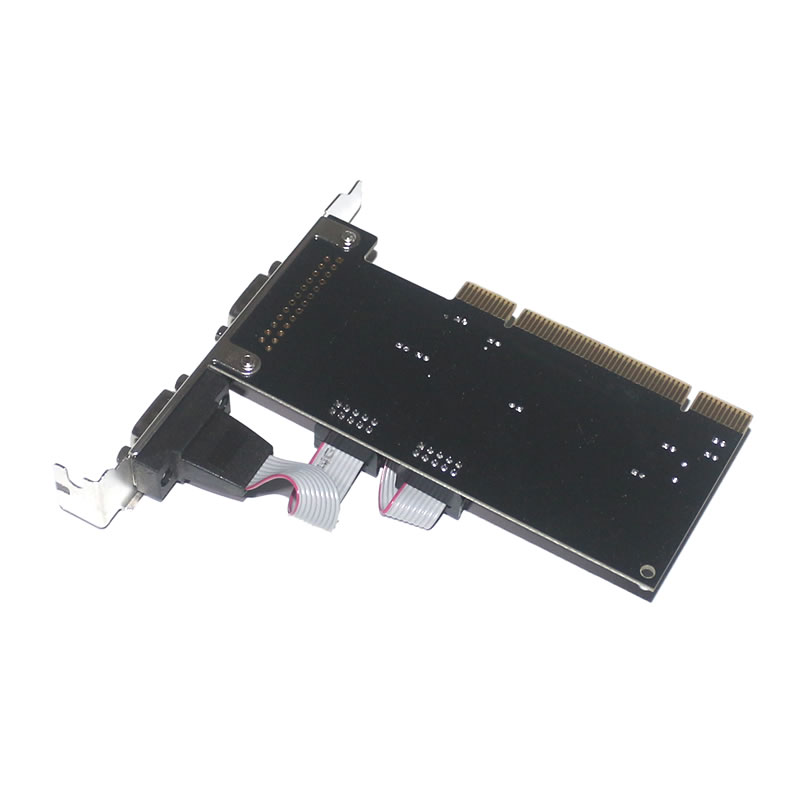

2-port RS232 PCI DB9-pin high-speed multi serial port card OX-MSC512

? Two 16C 450/550/Extended 550 compatible UART ? Bidirectional speed from 50 bps to 16 Mbps/port ? Full serial modem control ? Supports hardware and software flow control ? Supports serial transceiver shutdown ? Supports 5, 6, 7, 8, 9-bit serial formats ? Supports RS232, RS485, and RS422 modes ? Supports even, odd, none, space, and mark parity checks ? Customizable BAUD rate through external clock/internal PLL programming ? On chip deep 256 byte FIFO in the sending and receiving paths of each serial port ? ? Supports remote wake-up and power management functions ? Supports slow IrDA on all serial ports ? Ports comply with IEEE 1284 standard SPP/PS2/EPP/ECP parallel ports, fully supports Centronics interface

OX-MSC512 is a PCI based peripheral controller. It supports dual channel high-performance serial ports, dual enhanced IEEE 1284 compatible parallel ports, and ISA style interfaces. OX-MSC512 is highly suitable for desktop PC applications, such as PCI add ons for high-speed serial/parallel port expansion.

The PCI interface of OX-MSC512 fully complies with the PCI local bus specification version 2.3.

The on-chip serial port of OX-MSC512 supports extended 16C550 UART mode and supports serial speeds up to 16Mbps.

OX-MSC512 provides 256 byte deep transmit and receive FIFOs for each UART.

4. Deep FIFO can achieve high serial speed/throughput and reduce CPU utilization.

5. Each serial port is compatible with industry standard 16C550 devices, including standard COM ports for industrial PCs.

6. Parallel ports comply with the IEEE 1284 standard SPP/PS2/EPP/ECP parallel ports, fully supporting Centronics interfaces

PCI

Fully compliant with PCI local bus specification version 2.3

Compatible with MiniPCI application requirements

Fully customizable PCI configuration space

Compatible with 3.3V and 5V PCI signals

Support PCI power management

serial port

Two 16C 450/550/Extended 550 compatible with UART

Bidirectional speed ranges from 50 bps to 16 Mbps per port

Full serial port modem control

Support hardware and software flow control,

Support serial transceiver shutdown

Supports serial formats of 5, 6, 7, 8, and 9 bits

Supports RS232, RS485, and RS422 modes

Supports even, odd, none, spaces, and mark parity checks

Customize BAUD rate support through external clock/internal PLL programming

On chip deep 256 byte FIFO in the sending and receiving paths of each serial port

Support remote wake-up and power management functions

Supports slow IrDA on all serial ports

OX-MSC512
