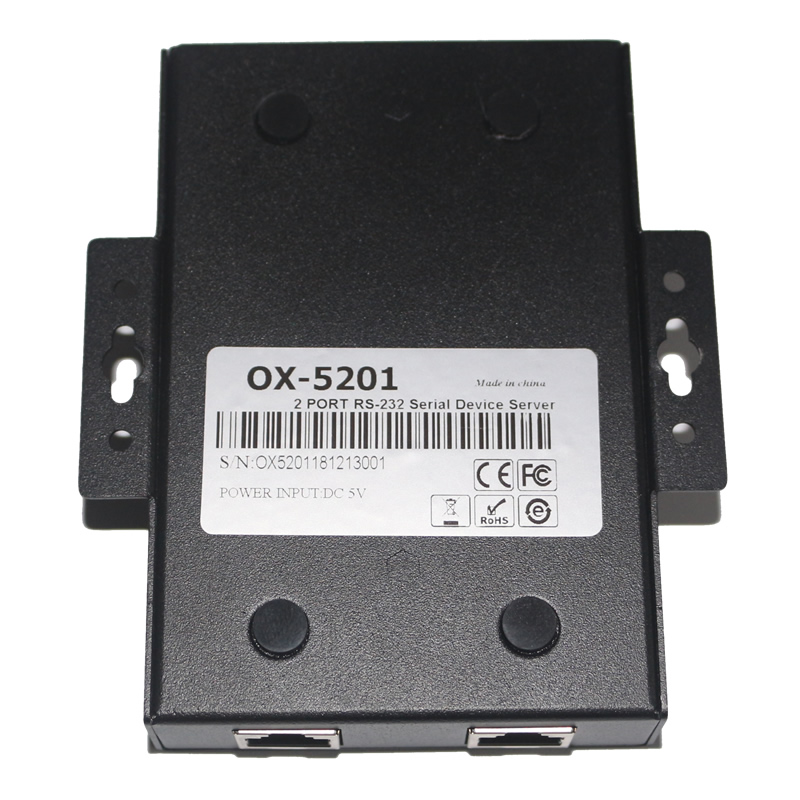

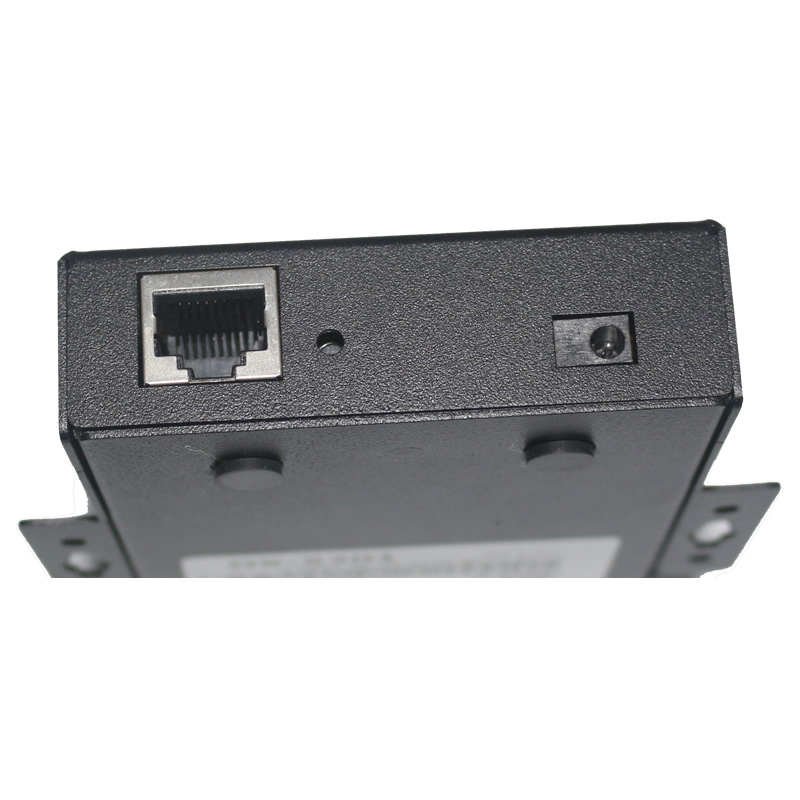

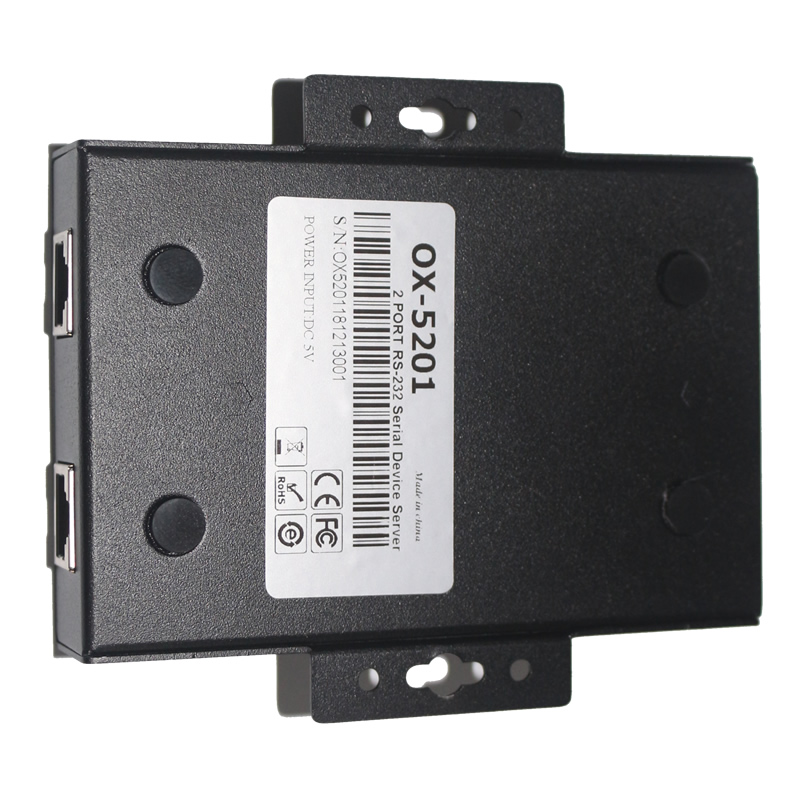

2-port RS232 to TCP/IP serial server OX-5201

? Adopting a 32-bit 200MHz high-performance processor with low power consumption and stable product operation ? Supporting Windows real COM serial port driver program, providing complete serial port data for user applications ? Can be managed and configured through Web/Telnet/Console, with a fully Chinese interface and simple operation ? Supports universal Socket operation modes, including TCP Server/Clint and UDP modes ? Can connect two equivalent serial devices through the network without adding a computer ? 10/100M adaptive Ethernet interface, can manually set the working mode ? Network port signal built-in 15 KV ESD protection ? Serial port signal built-in 15 KV ESD protection, 600W surge protection ? Supports simple network management protocol SNMP MIB-II ? Supports standard Syslog protocol ? Supports standard Modbus RTU to Modbus TCP ? Supports RFC2217 Telnet terminal protocol ? Supports multi connection control (up to 8 devices) PC simultaneous control) ? Can be managed and configured through Web/Telnet/Console, easy to operate and maintain ? Has serial line detection function, timely discovers serial line connection status ? Has 1, 2, 4, 8, 16, 32 serial interfaces, making serial terminal devices easily networked

OX-5201 serial port server, also known as terminal server or serial communication server, is a converter between asynchronous serial port RS232 and Ethernet. It is an independent smart device with a CPU, embedded OS, and a complete TCP/IP protocol stack. Completing bidirectional transparent data transmission between RS232 and Ethernet enables RS232 serial devices to immediately connect to the network.

Number of serial ports	model	specifications	Serial port interface type	Power supply and appearance	notes
1opening	OX-5103E	1openingRS232/485/422changeTCP/IP	DB9terminal	9-40VDesktop power supply
1opening	OX-5103I	1openingRS232/485/422changeTCP/IP	DB9terminal	9-40VDesktop power supply	Industrial grade with isolated lightning protection, customizable1URack
2opening	OX-5201	2openingRS232changeTCP/IP	RJ45	5VDesktop power supply	9-40Vcustomizable
	OX-5202	2openingRS485/422changeTCP/IP	RJ45	5VDesktop power supply	9-40Vcustomizable
	OX-5203I	2openingRS232perhapsRS485/422changeTCP/IP	terminal	5VDesktop power supply	Industrial grade with isolated lightning protection, customizable1URack
4opening	OX-5403	4openingRS232/485/422changeTCP/IP	RJ45	5VDesktop power supply	9-40Vcustomizable
4opening	OX-5403I	4openingRS232perhapsRS485/422changeTCP/IP	terminal	9-40VDesktop power supply	Industrial grade with isolated lightning protection, customizable1URack
8opening	OX-5803	8openingRS232/485/422changeTCP/IP	RJ45	5VDesktop power supply	9-40VCan be reserved
	OX-5803I	8openingRS232perhapsRS485/422changeTCP/IP	terminal	9-40VDesktop power supply	Industrial grade with isolated lightning protection, customizable1URack
	OX-5803D	8openingRS232/485/422changeTCP/IP	RJ45	220Vpower supply1URack	48VAnd interface type（DB9Or terminals) can be reserved
16opening	OX-5161	16openingRS232changeTCP/IP	RJ45	220Vpower supply1URack
	OX-5162	16openingRS485/422changeTCP/IP	RJ45	220Vpower supply1URack
	OX-5163	16openingRS232/485/422changeTCP/IP	RJ45	220Vpower supply1URack
32opening	OX-5321	32openingRS232changeTCP/IP	RJ45	220Vpower supply1URack
	OX-5322	32openingRS485/422changeTCP/IP	RJ45	220Vpower supply1URack
	OX-5323	32openingRS232/485/422changeTCP/IP	RJ45	220Vpower supply1URack

Product model: OX-5201

Number of serial ports: 2

Processor: ARM9 platform 32-bit processor

Memory: 2M

Baud rate: 110-460800bps

Check bits: Novel, Odd, Even, Mark, Space

Data bits: 5, 6, 7, 8

Stop position: 1, 1.5, 2

Traffic control: RTS/CTS, XON/XOFF, DSR/DTR

Interface form: DB9/4-digit terminal

Serial port protection: 15 KV ESD protection for all signals, RS422/485 600W TVS protection

Serial port signal: RS232: TxD/RxD/RTS/CTS/DTR/DSR/DCD/GND

RS422：TXD /RXD /TXD-/RXD-/GND、RS485：Data /Data-

Maximum number of sessions: 6

Speed: 10/100M adaptive

Network port form: RJ45 head

Network port protection: built-in 1.5 KV electromagnetic protection

Supported protocols: ICMP, IP, TCP, UDP, DHCP, Telnet, SNMP, HTTP, etc

Virtual software: Windows NT/2000/XP/2003/win7/win8/win10 32/64bit

Working temperature: -20 ℃ to -70 ℃

Storage temperature: -40 ℃ ---85 ℃

Working humidity: 5% -95%

Storage humidity: 5% -95%

Rated power: 90mA @ 12V

MTBF: ≥ 100000 hours

authentication：CE、FCC

Working voltage: 5V/9-40V

Material: Metal material, protection level IP30

Size: 113 * 77 * 23
