Dedicated RS485 networked IO status collector for computer room

Change the star shaped structure to a main line type to save time and wire costs. ? Can be connected to DO sensors for classification, providing a register setting ? Bus supports loading 128 status collectors simultaneously (measured) Fast response, supporting collection once every 100ms Compatible with a wide voltage range of 5-26VDC, it can solve the problem of insufficient terminal voltage supply caused by long bus distance Supports 2 RJ45 interfaces, connected in series through Ethernet cables Small size and easy to conceal installation (can be concealed inside the 86 bottom box) Status indicator light, communication indicator light The bus address supports software settings and automatic instruction addressing, which is more conducive to rapid on-site deployment.

OAO-801D state collector is a state collector specifically designed for use in data centers, base stations, and buildings when using infrared motion detection, smoke sensors, water immersion, and other DO outputs

DIinterfacedostate quantitygather:Can be used forCollect smoke detectors,infrared,Water immersion,Door statusclassAt the same time, it can supply power to these devices.

Compact size for easy concealed installation.
2individualRJ45The interface does not differentiate between incoming and outgoing lines, making it easy to install on site;
RJ45Two mouths12VAnd twoGNDMust all be connected;
Input voltage level: 5VDC~26VDC, Suggestions12VDC;
operation temperaturerange:-20℃~70℃;
indicator light:
- PWRConstant light indicates normal power on, flashing indicates data communication on the bus;
- DI: Always on indicatesDIClosed state, constant extinguishing indicatesDIStatus disconnected.
ModbusIDset upway:Instruction modification, supports automatic bus addressing, seeSet sensor address
Minimum collection period:100ms
rated power: 12V*14mA

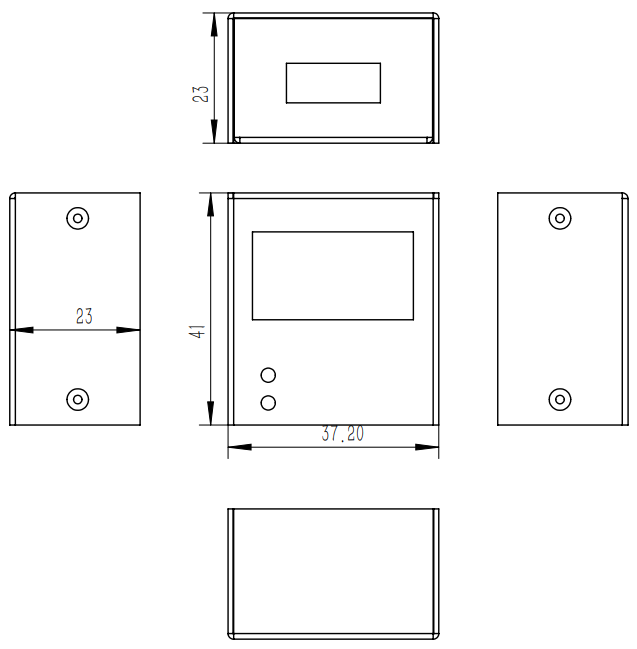

External dimensions:41*37.2*23mm (L*W*H)
Net weight:85g
Installation method:Hidden in86Inside the box or with adhesive backing

RS485聯網型IO狀態采集器V2
