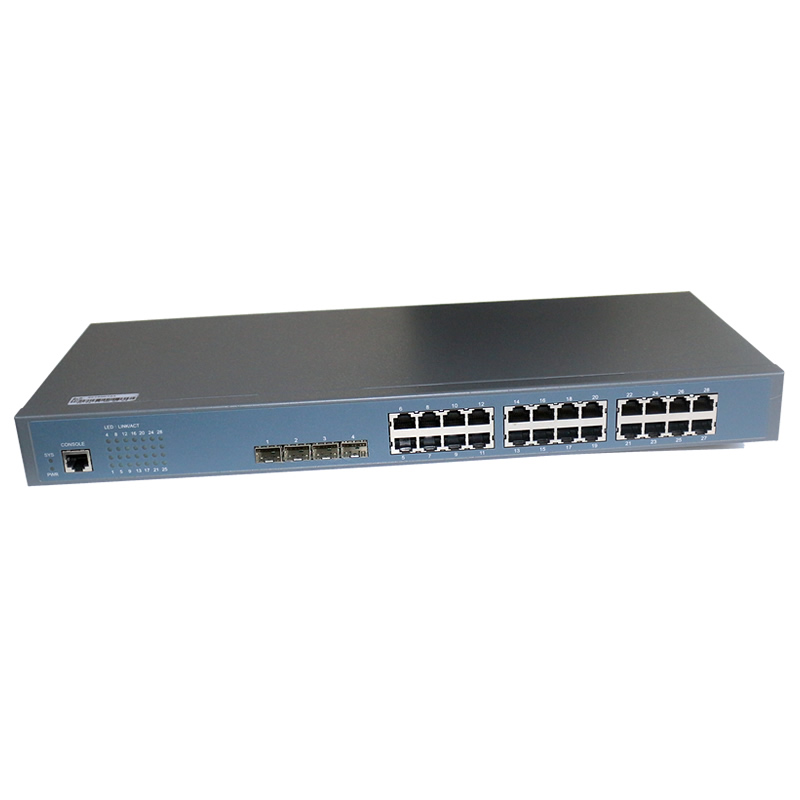

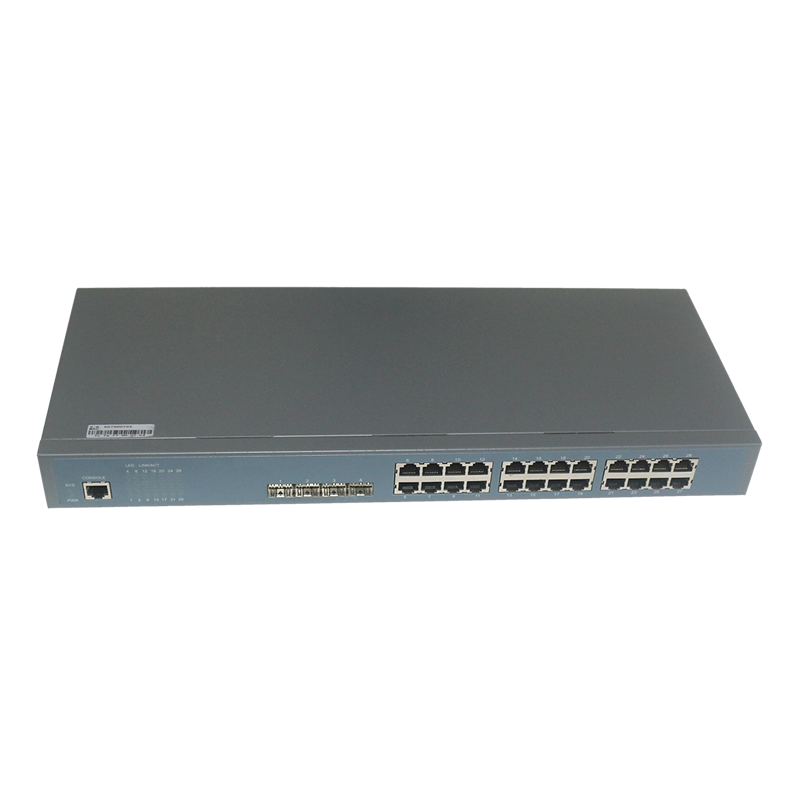

? 24 Gigabit Ethernet RJ45 ports ? 4 Gigabit Ethernet SFP optical ports ? 1 Console port speed 9600bps, RJ45 interface ? speed 10/100/1000M adaptive, cable MDI/MDIX self identification, UTP (RJ45) interface, with LINK/ACT indicator light. SFP interface, supports gigabit optical modules, with LINK and ACT indicator lights. ? Dimensions 442.5mm × 315 mm × 44mm ? Operating temperature/humidity: 0 ℃~40 ℃; 10% to 85% non condensing, storage temperature/humidity -40 ℃ to 80 ℃; 5% to 95% non condensing
| part Number |
English name |
Chinese name |
describe |
| 1 |
SYS |
System indicator |
The indicator light is constantly on, indicating that the system is starting up. The indicator light is flashing and the system is working normally. |
| 2 |
PWR |
Power indicator light |
The switch is powered on and the light is on. |
| 3 |
CONSOLE |
Console port |
Implement local management of switches. |
| 4 |
LINK/ACT |
Port indicator light |
The indicator light is constantly on, indicating that the LINK port is functioning properly. The indicator light is flashing, indicating that the port is communicating. |
| 5 |
1-4 |
4 Gigabit SFP optical ports |
Realize the forwarding of 1000M Ethernet optical signals |
| 6 |
5-28 |
24 1000Base-T ports |
Realize the forwarding of 10M/100/1000M Ethernet electrical signals |
| joint opinion treetop accurate |
Supported Standards |
IEEE 802.1d Spanning Tree Protocol IEEE 802.1s multiple spanning trees IEEE 802.1p Class of Service IEEE 802.1q tagged VLAN IEEE 802.3x Flow control IEEE 802.3z asymmetric flow control IEEE 802.3ad Link aggregation |
| Network management standards |
RFC 1157 SNMP v1/v2 RFC 1213 MIB II RFC 1757 RMON 1,2,3,9 |
|
| hard piece particular sexually |
storage |
Flash Memory：16M Bytes SDRAM：128M Bytes |
| Standard configuration |
24 10/100/1000BASE-T ports 4 Gigabit Ethernet SFP optical ports 1 Console port |
|
| External dimensions |
442.5mm×315 mm×44mm |
|
| Working temperature/humidity |
0℃～40℃； 10% to 85% non condensing |
|
| Storage temperature/humidity |
-40℃～80℃； 5% to 95% non condensing |
|
| Power characteristics |

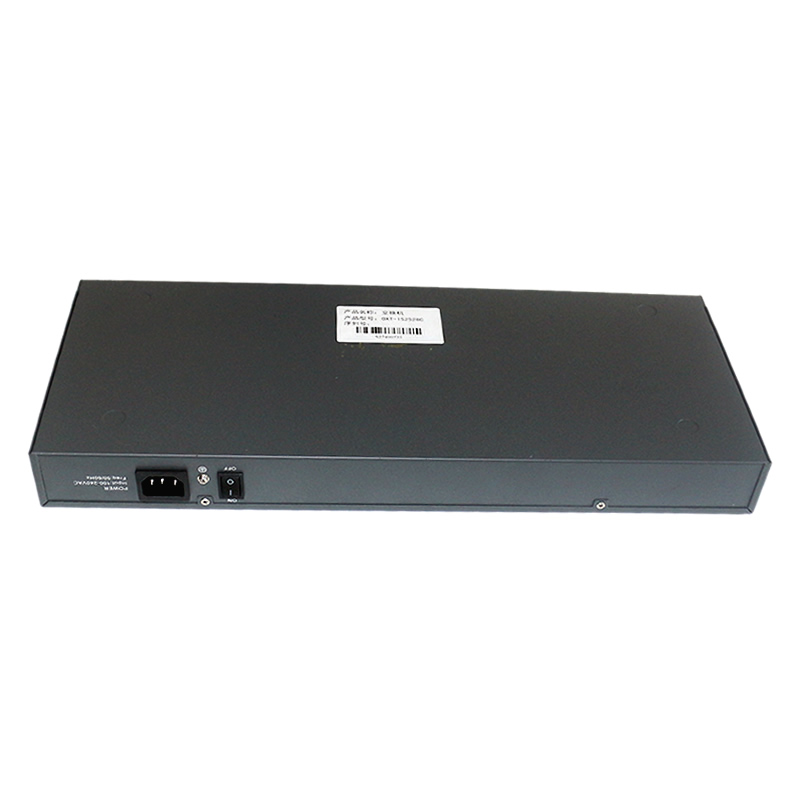

Input voltage: AC100-240V, input frequency 47-63Hz Input current: 1.2A (MAX) Output voltage: 12VDC Output current: 6A (MAX) |
|
| Full load power consumption |
33W |
