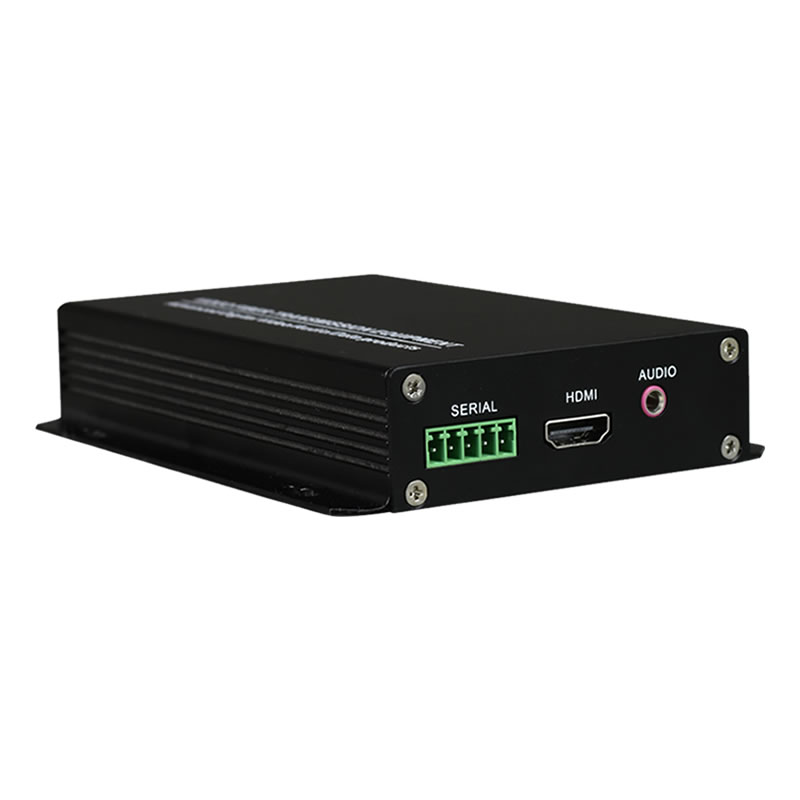

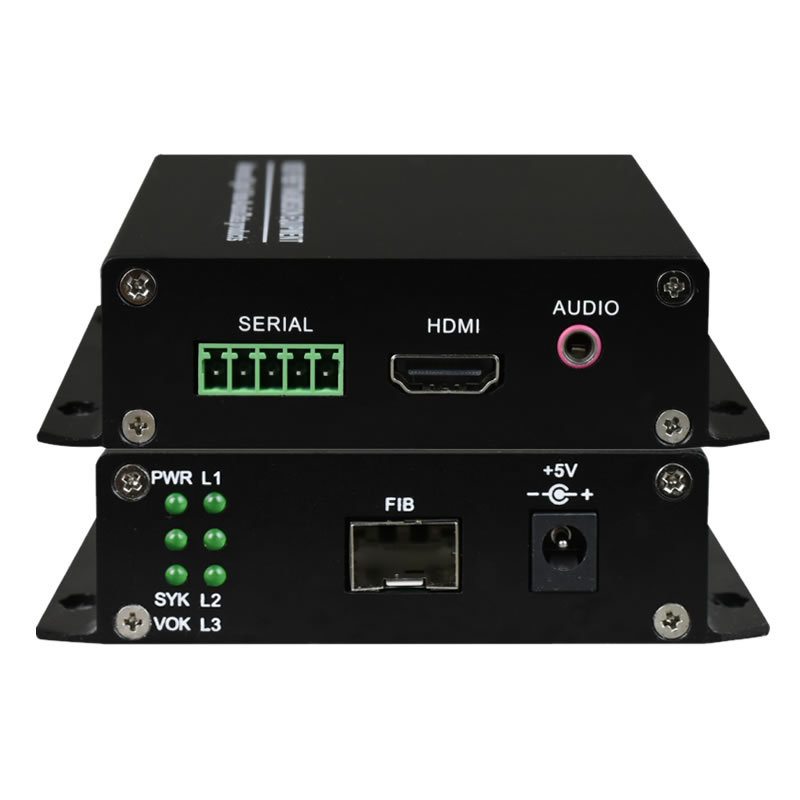

1-channel uncompressed 4K HDMI optical transceiver OX-VMV1T/R

Full digital, uncompressed, high-definition fiber optic transmission; 10G fiber optic transmission rate, truly transparent transmission without compression or delay. ? Supports HDMI 1.4, HDCP v1.4 high-definition and 3D video signal transmission, with a maximum resolution of 4096 × 2160@30HZ Can reverse transmit EDID and support HDCP content protection. Automatically recognize and configure various display modes; Equipped with independent analog audio or a single RS232/422/485 serial port data; The HDMI interface is equipped with an ESD protection circuit, which can effectively prevent static electricity loss; On site installation: simple and convenient, plug and play, no need for settings; 300 meters of multimode fiber and 10-80 kilometers of single-mode fiber for long-distance transmission. Aluminum alloy oxygen oxidation shell is suitable for harsh industrial environments such as extremely high and low temperatures; Full surface mount technology, high reliability; ? No software settings required, supports plug and play functionality, and supports hot swapping;

The OX-VMV1T/R 4K high-definition HDMI optical transceiver supports 4K resolution and 10G high-speed optoelectronic conversion transmission. It is actually a device that uses a single fiber optic cable to extend HDMI signals, speakers, microphones, RS232, and more. EDID real-time feedback, supporting the transmission of RS232 serial port signals, used for communication with LCD screens, camera gimbal, and can also be used for long-distance transmission of touch screen. Low energy consumption, long distance, plug and play, strong compatibility, can achieve more accurate display

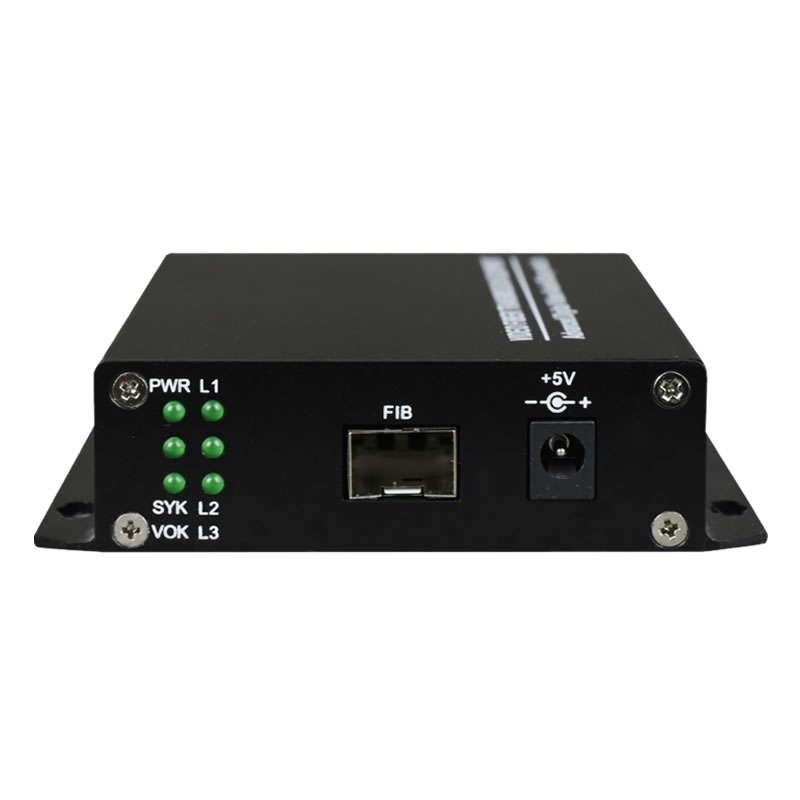

Fiber optic section

Fiber count: single fiber, dual fiber

Fiber optic interface: LC

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single-mode

Transmission distance: 10~80Km

Typical transmission power:

Single mode 1310/1550nm: ≥ -9dBm

Multimode 850nm: -18dBm

Multimode 1310nm: -25dBm

Acceptable sensitivity range: -33dBm~40dBm

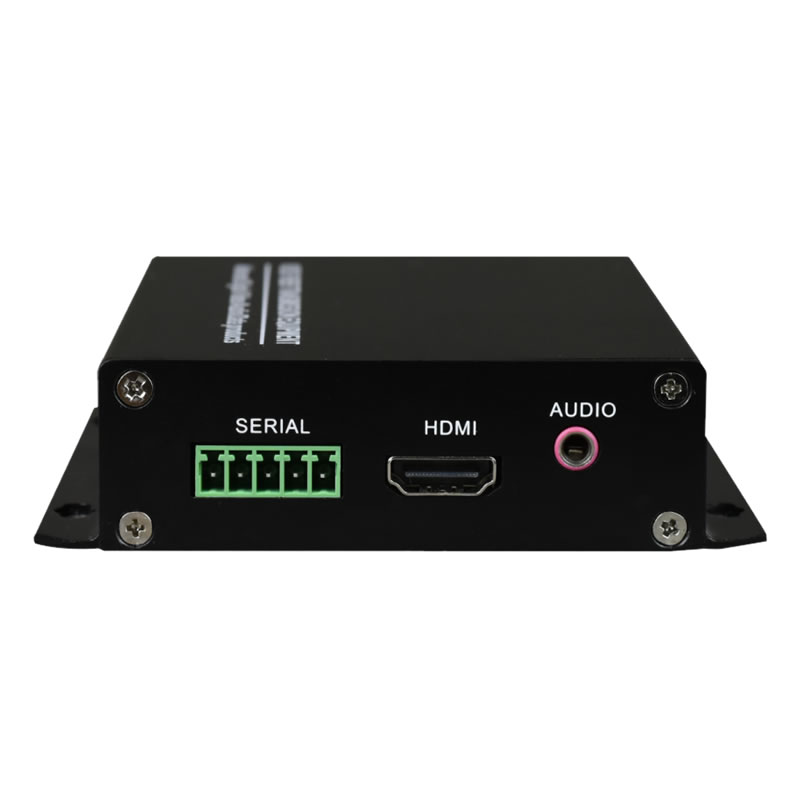

HDMIinterface

name		describe
video	interface	HDMI Female Head
	standard	HDMI 1.4 HDCP1.4
	pixel bandwidth	340MHz
	resolution	800x600P60
		1024x768P60
		1280x800P60
		1280x1024P60
		1360x768P60
		1366x768P60
		1400x1050P60
		1440x900P60
		1600x900P60
		1600x1200P60
		1680x1050P60
		1280x720P50
		1280x720P60
		1920x1080P24
		1920x1080P25
		1920x1080P30
		1920x1080P50
		1920x1080P60
		1920x1080I60
		1920x1080I50
		1920x1200P60
		3840x2160P30

Electrical and mechanical characteristics

System power supply: AC180V~260V
power waste: ≤10W

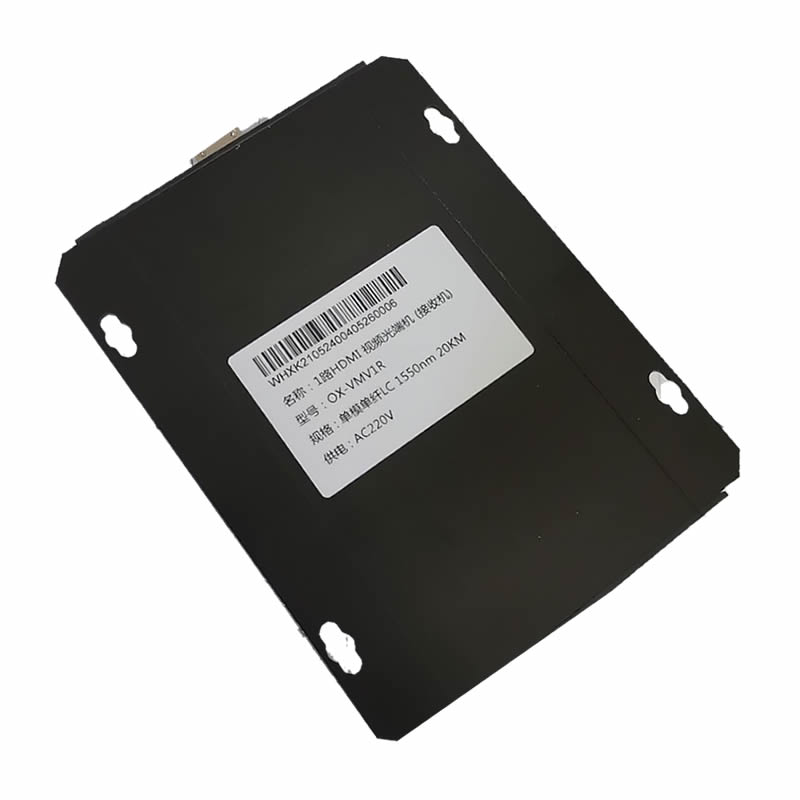

Appearance structure:

Environmental Indicators

Working temperature: -10 ℃ -55 ℃

Storage temperature: -40 ℃ -90 ℃

Working humidity: 0% -95% (no condensation)

MTBF:>100000 hours
